COEFICIENTE 4:1

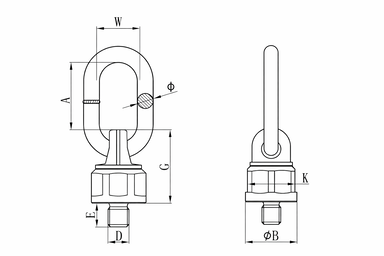

| ROSCA | DIMENSIONES (mm) | CARGA DE TRABAJO (TN) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | G | W | K | E | Ø | 90º | 0º | |
| 3/8 x 16 | 1.86 | 1.42 | 2.05 | 1.18 | 1.31 | 19 | 0.51 | 0.6 | 0.9 |
| 5/8 x 11 | 1.86 | 1.42 | 2.05 | 1.18 | 1.31 | 31.7 | 0.51 | 1.5 | 2.6 |
| 1 x 8 | 2.87 | 2.36 | 3.19 | 1.57 | 2.13 | 30 | 0.71 | 4 | 7 |
| M16 x 2.00 | 47.2 | 36 | 52 | 30 | 33.4 | 31.8 | 13 | 1.5 | 2.6 |
| M20 x 2.50 | 72.8 | 60 | 81 | 40 | 54.2 | 30 | 18 | 2.5 | 4 |
| M24 x 3.00 | 72.8 | 60 | 81 | 40 | 54.2 | 30 | 18 | 4. | 7 |
